MK-6

Our most popular and versatile models, the MK-6 and MK-6 Extended are the workhorses of the EZ Cut product line. Similar to the MK100, the MK-6’s features also include an advanced PLC counter, air powered anti-cone shuttle, programmable and speed controls. Coupled with robust, rugged design, these features guarantee a long-lasting, low-maintenance machine that will save you money in the long run.

Extended refers to the length of the cutting table. Generally EZ-Cut machines will have a 13.5 foot cutting table. The extended model will host a 15.5 foot cutting table.

FEATURES

Laser cut precision manufacturing, innovative engineering and advanced technology ensure optimum performance, efficiency and dependability.

User-friendly design allows a single operator to easily inspect, re-roll, measure, cut and wrap all your orders with accuracy, speed and cleanliness.

Includes direct drive motors and a cable-driven cutting bar for superior results.

Our exclusive patented Reverse Roll System allows you to backroll Carpet or Vinyl with pile or pattern-side out in one simple step.

Ease of serviceability and user-friendly design mean you can enjoy the benefits of this low-maintenance machine for many years.

Arrives fully assembled and ready to work



MK-6 SPECIFICATIONS

POWER 220V(Single Phase) /60 Hz /20 Amp
(Outside N. America:208-230V /50 Hz)
DIMENSIONS 6'2"W x 16'0"L x 3'6"H
USE FOR Medium-High Volume Operations
WARRANTY 3 Year Parts, 1 Year Labor (Limited)
SAFETY Meets all CSA and UL Safety Standards
OPTIONS Cross Splitter Attachment for splitting rolls.
Cutting Track Extensions.
Choice of Cable or Tape Switch for Perimeter Controls.
AIRSOURCE 1.5 HP; 10 Gallon Tank; 120 psi; 5-8 CFM. (Minimum)
BROCHURE Download Brochure

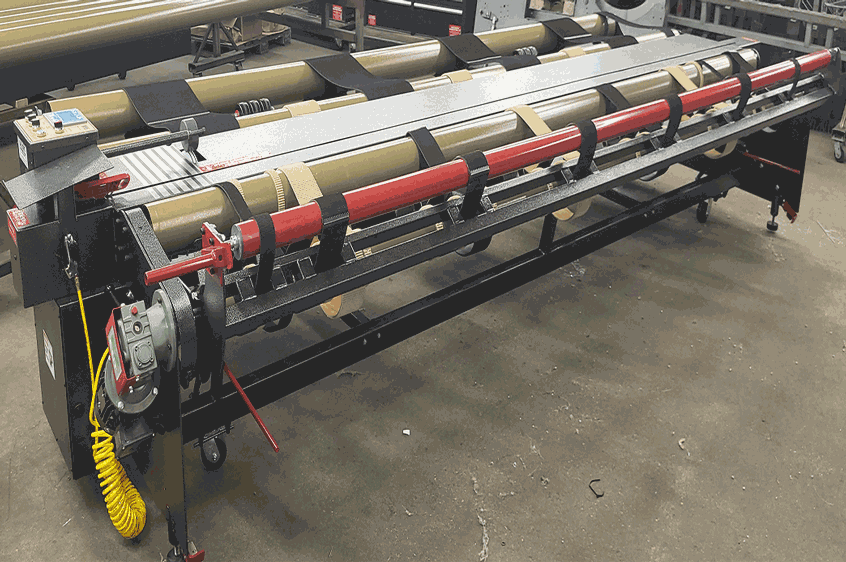

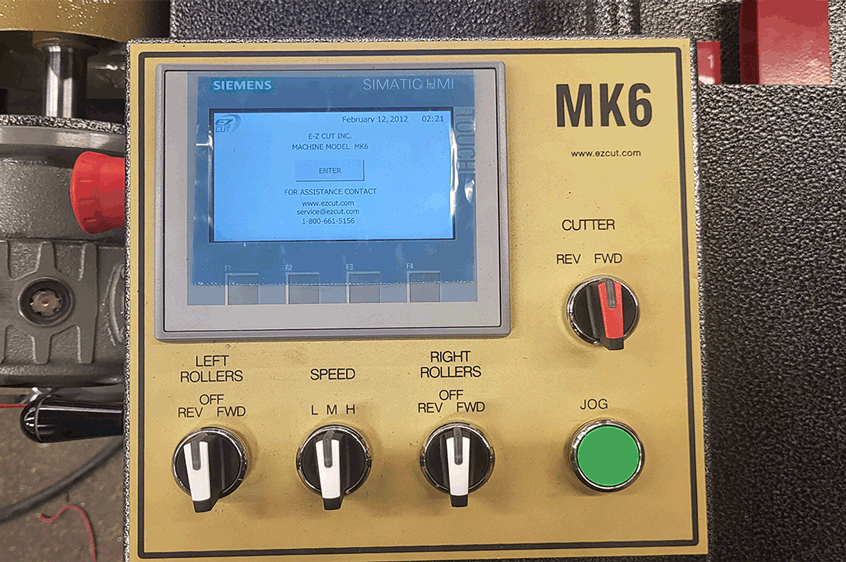

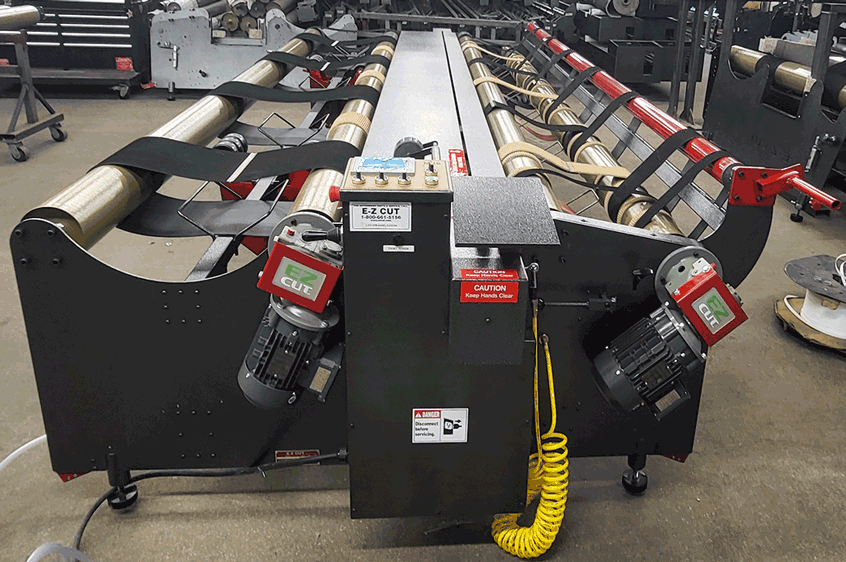

MK6 panel MK6 Open MK6
